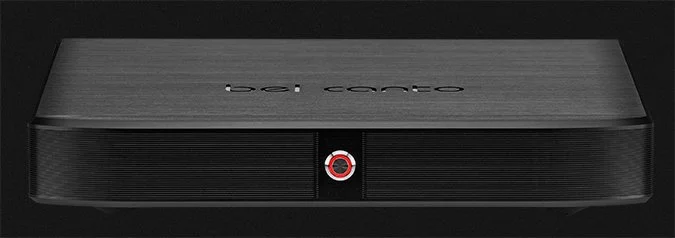

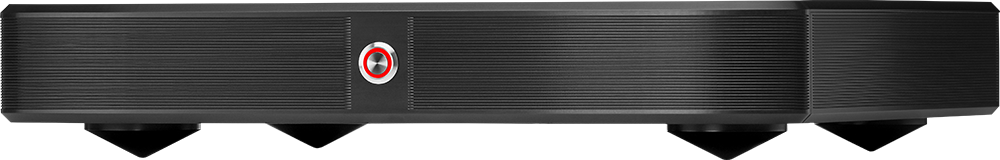

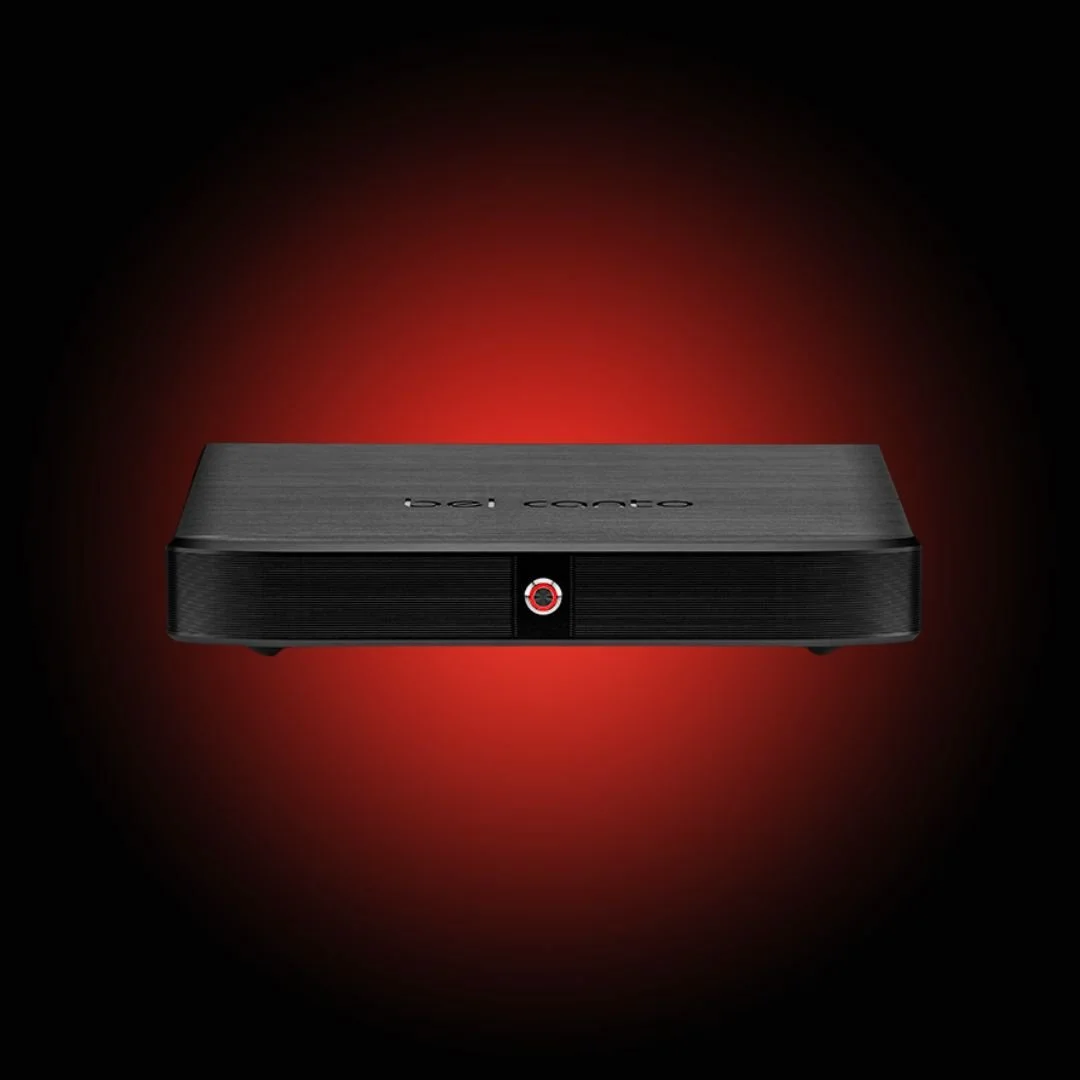

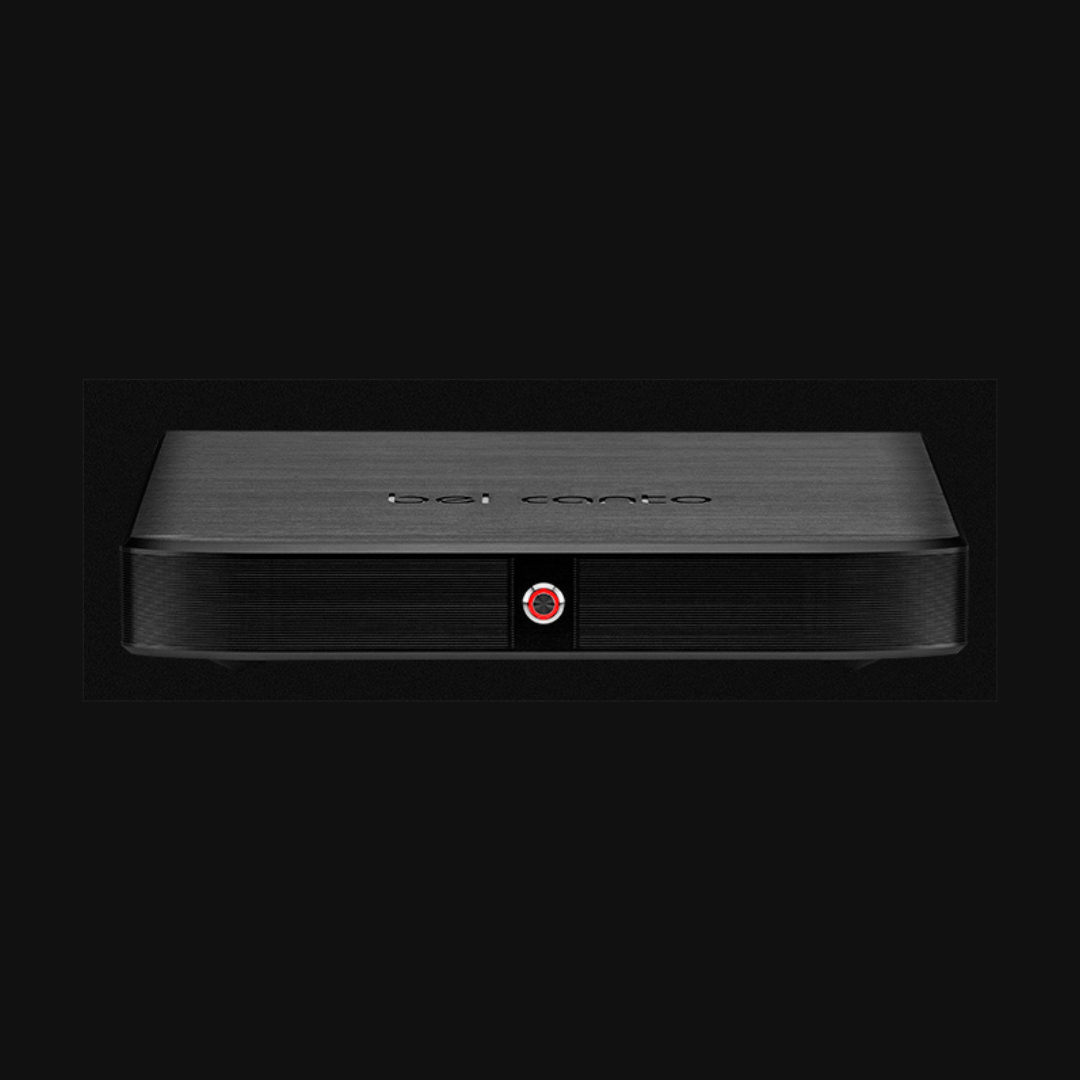

Black EX
Dual Mono
Amplifier
The Black EX Amplifier delivers powerful, reference-level performance with dual-mono Class D architecture, high-current output, and ultra-low distortion—all housed in a precision-machined aluminum chassis engineered for pure, dynamic sound.
The Black EX Dual Mono Amplifier is a compact powerhouse, the ultimate iron fist in a velvet glove, combining iron grip with subtle musical cues that brings life to your music. In a custom high-grade aluminum chassis with independent power supplies unique to Black EX for true dual-mono performance. The EX Amplifier will delight with its ability to crate a compelling musical experience with any loudspeaker. The fully discrete analog signal path and selected components impart a dynamic, musicality that is unmistakable Bel Canto.
The highly efficient technology of the EX Amplifier is always in a ready state for high performance operation. The EX Amplifier is designed to drive any loudspeaker with ultra low-noise and high power. The internal gain switches allow you to further optimize the EX Amplifier to your system.
High Dynamic Range - Low Noise and Distortion: The single stage architecture of our linear switching power stage has remarkable audio band noise characteristics. With over 130dB dynamic range potential and vanishingly low IMD and THD distortion is completely transparent, hear-through performance is delivered.
The Black EX Amplifier delivers effortless power and precision, driving speakers with authority and control. Its refined architecture preserves dynamic integrity and harmonic balance, revealing the full depth and emotion of every performance.
EX AMP
TECH
EX Amplifier Technology

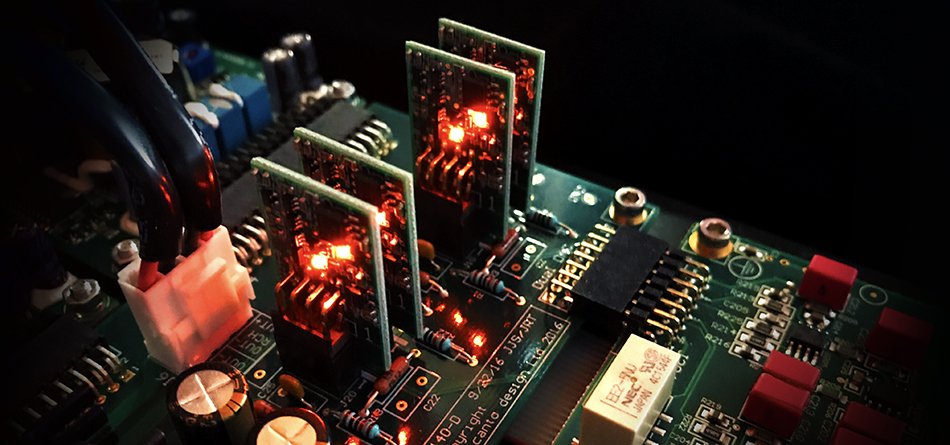

Our proprietary SSHA (Single Stage High-Current Amplifier) interposer defines the sonic quality of the EX Dual Mono Amplifier. This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains constant very low distortion levels through the audio band because of its high open-loop bandwidth. The SSHA module brings a further element of dynamic resolution and contrast to the NCore Amplifier power buffer. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design. The PCB represents a final degree of design refinement that is especially critical when the circuit is capable of 130dB of dynamic range or more.
EX Amplifier Specifications
Performance
Power Output 1% THD per Channel: 700W 4 ohms, 350W 8 ohms
Minimum Load: 2 ohms
Peak Output Current: 27 amperes
Frequency Response: +/-3 dB 0Hz-50KHz, all loads
THD+N: 0.002% 1W, 1KHz, 4 ohms
IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
Output noise: 35uVRMS A-weighted 10Hz-20KHz
Voltage gain: 27dB (internal switches select for 33dB)
Damping factor: >500
Output Impedance at 100Hz: <16 milliohms
Dynamic Range: 126dB
Input Voltage for Max Output: 2.3Vrms at 27dB gain

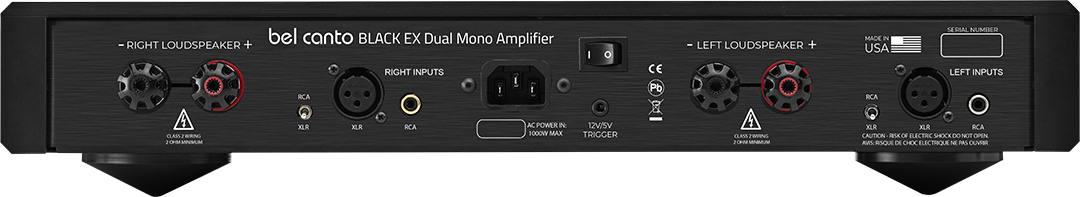

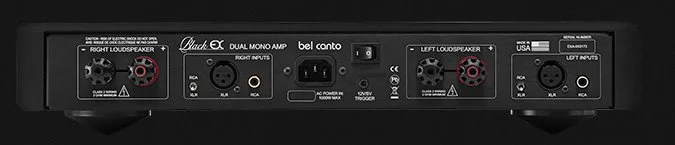

Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 20Kohms
Output connections: 2 sets WBT Nextgen 5-way binding posts
General
Power On usage: 44W
Standby usage: 0.5W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 17.75 W x 15.5 D x 3.5 H inches, 451 x 394 x 89mm
Weight: 25 lbs. (12kg)
Features and specifications are subject to improvements and changes without prior notice.
