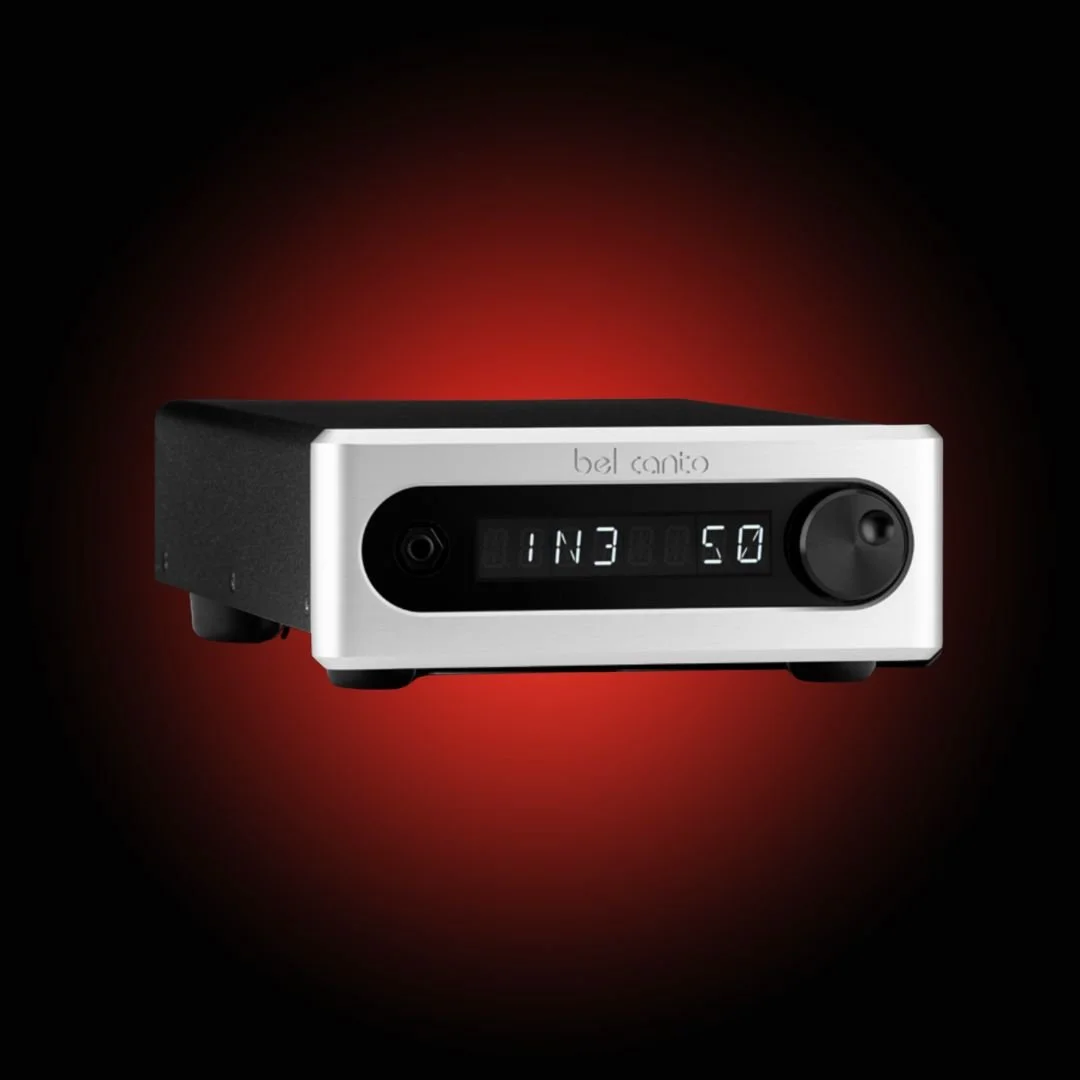

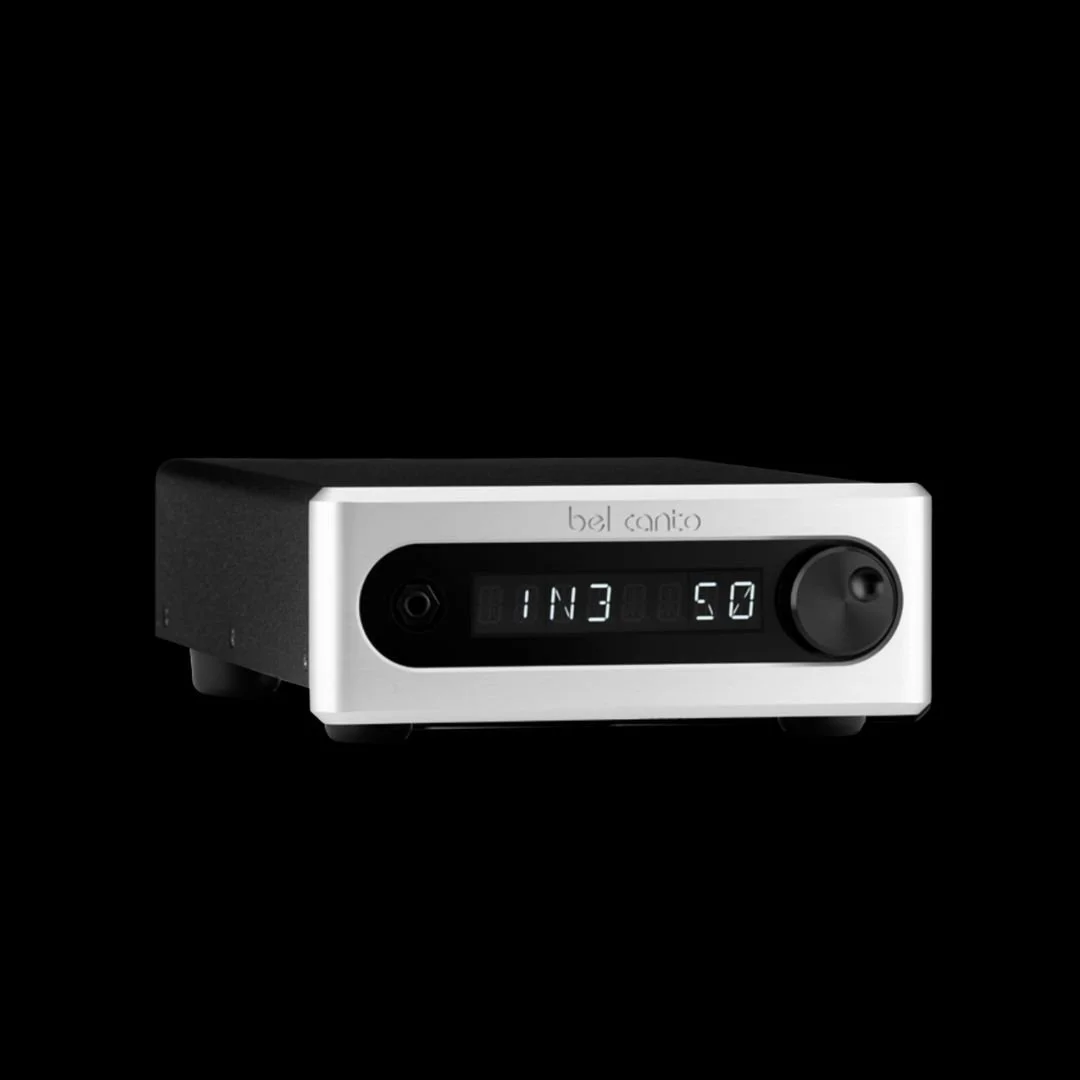

e.One Pre5 Balanced Analog Control Preamplifier
The e.One Pre5 Preamplifier offers dynamic, low-noise performance through a fully balanced analog design. Its precision circuitry, high-quality XLR/RCA inputs, and independently buffered outputs deliver a clean, faithful signal to your amplifier in a compact, high-performance chassis.
The e.One Pre5 is a highly dynamic fully balanced analog preamplifier. The precise circuitry and compact balanced architecture deliver a pure signal to your amplifier revealing the detail and natural tone of the finest recordings.
Fully Balanced Internal Architecture for Lowest Noise and Distortion
XLR and 4 High Quality RCA Inputs
Independently Buffered XLR and RCA Outputs
Remote Control
Available in Silver or Black Faceplate
The e.One Pre5 delivers reference-grade analog control with exceptional purity and finesse. Its fully balanced architecture minimizes noise and distortion, providing a direct, transparent signal path to your amplifier. With precision circuitry, high-quality XLR and RCA inputs, and intuitive operation, the Pre5 reveals the natural tone, detail, and dynamic realism in every recording.
e.One Pre5 Features
The Pre5 sophisticated circuit architecture and component choices raises the bar of traditional analog control preamp. The Ultra-low distortion and noise performance is the result of a fully balanced internal architecture and discrete high current output buffers that provide a compelling combination of dynamic resolution, impact, and musical presence.
125dB Dynamic Range preserves all recorded information
Distortion below 0.001% for pure sound
High current discrete custom output buffers
e.One Pre5 Specifications
Analog Inputs
Balanced Input Impedance: 10k Ohms
Single-ended Line Input Impedance: 50k Ohms
Maximum Input Level Balanced: 5Vrms
Maximum Input Level Single Ended: 2.5Vrms
Maximum Output Level, RCA and XLR 5Vrms
Distortion at 1Vrms Output: <0.002% 1KHz
Dynamic Range: 125dB A-Weighted re: 5Vrms
Single-ended Line Out Impedance: 50 Ohms
Balanced Output Impedance: 100 Ohms
General

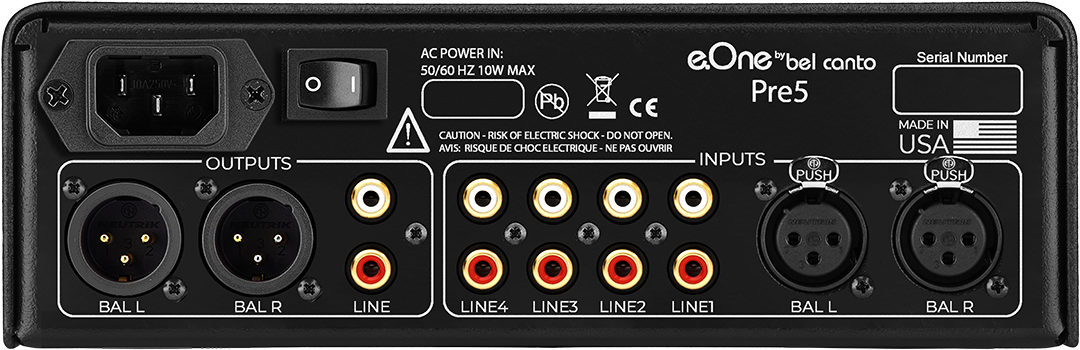

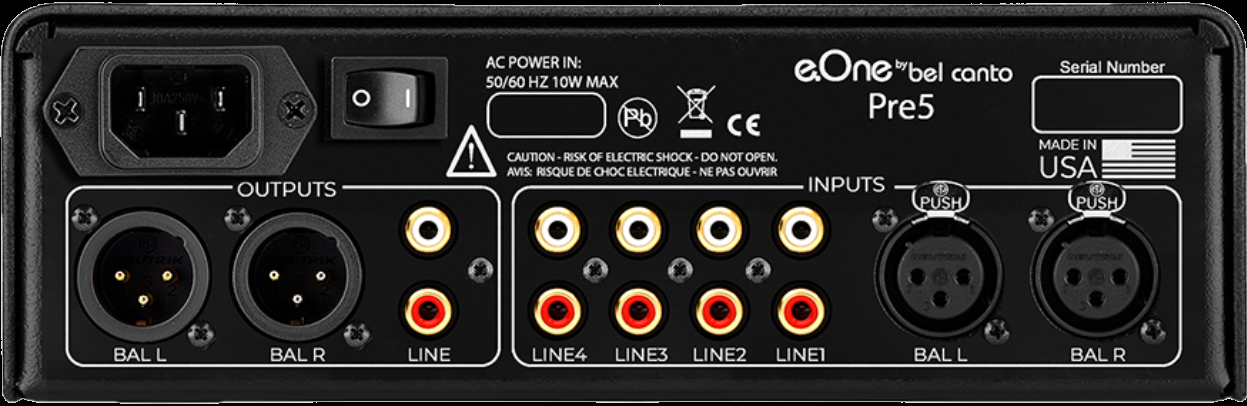

Output Connections: XLR and RCA Outputs
Power Usage On: 4W
Power Usage Off: 0.0W
Power Input: 100-120VAC, 220-240VAC 50/60 Hz
Fuse
Littlefuse 214 Series, 3 ampere, time-lag, 250VAC, 5x20mm ceramic body fuse
Dimensions
8.5" W x 12" D x 3.5" H (216 mm x 305 mm x 88 mm)
Weight: 13lbs. (6.5 kg)
Features and specifications are subject to improvements and changes without prior notice.
